Case Study

IG Metrics - Desktop Analytics Tool

IG Metrics is a cross-platform desktop app that helps users analyze Instagram export files, identify accounts that do not follow back, and take action with sortable lists and exportable data.

Role

Solo Developer

Timeline

A few weeks (10-30 hours)

Budget

Platform

Desktop (Electron)

Problem

Instagram users can export follower/following data, but quickly understanding who is not following back is still a manual and frustrating process. IG Metrics turns raw JSON exports into immediate relationship insights and actionable lists.

Target users include creators, influencers, ratio-focused casual users, and small business accounts that actively monitor audience quality.

Screenshots

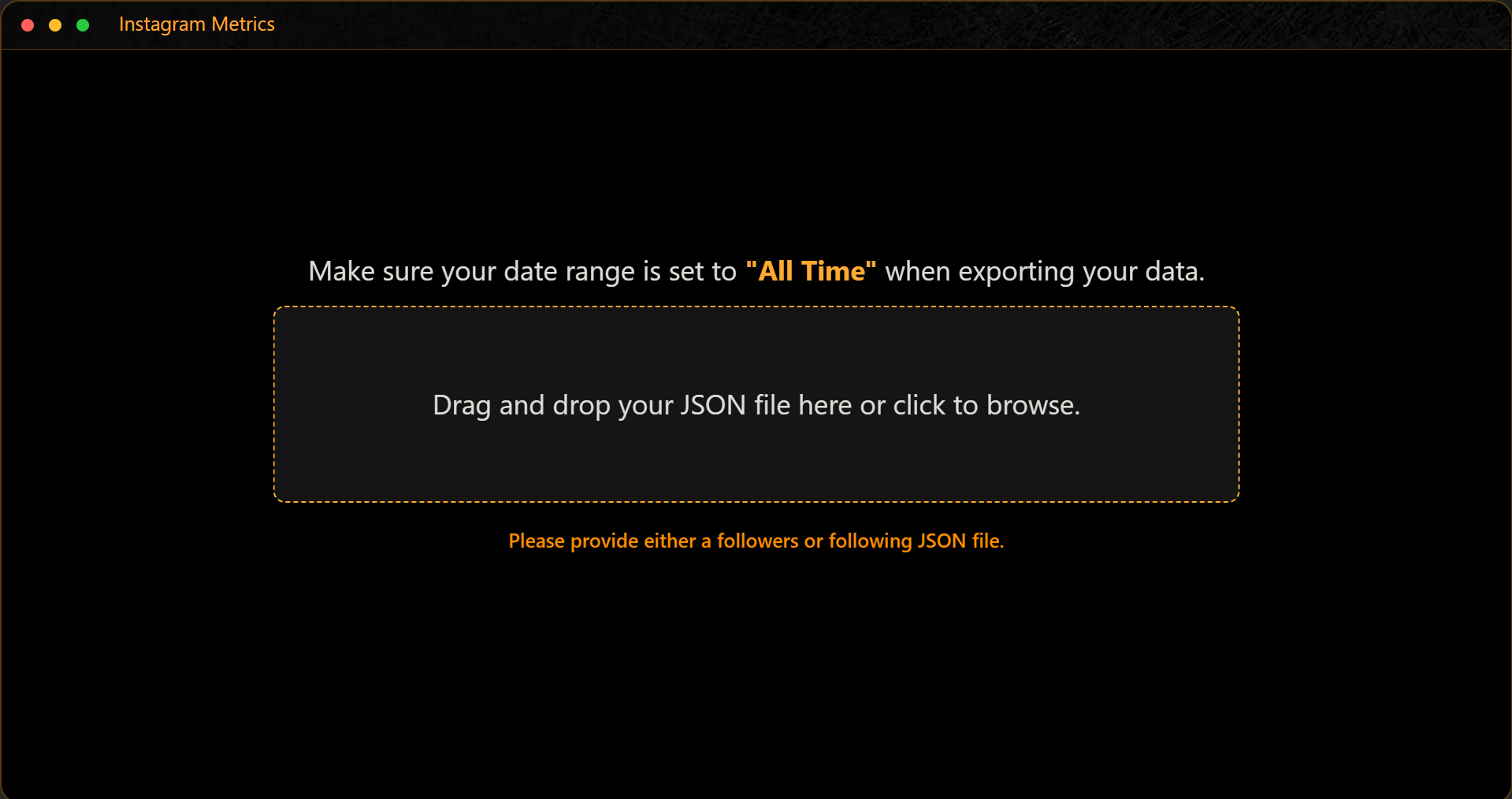

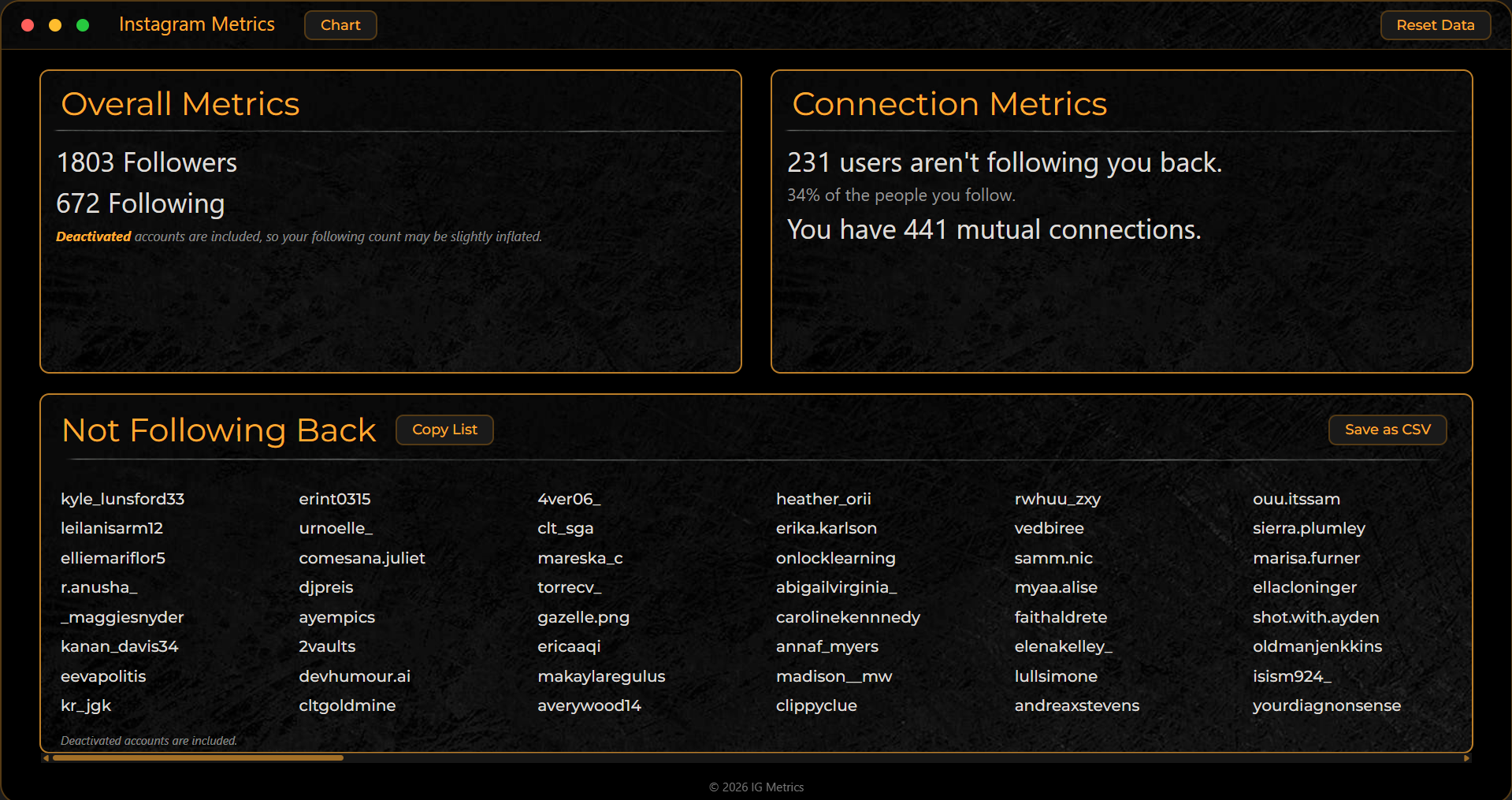

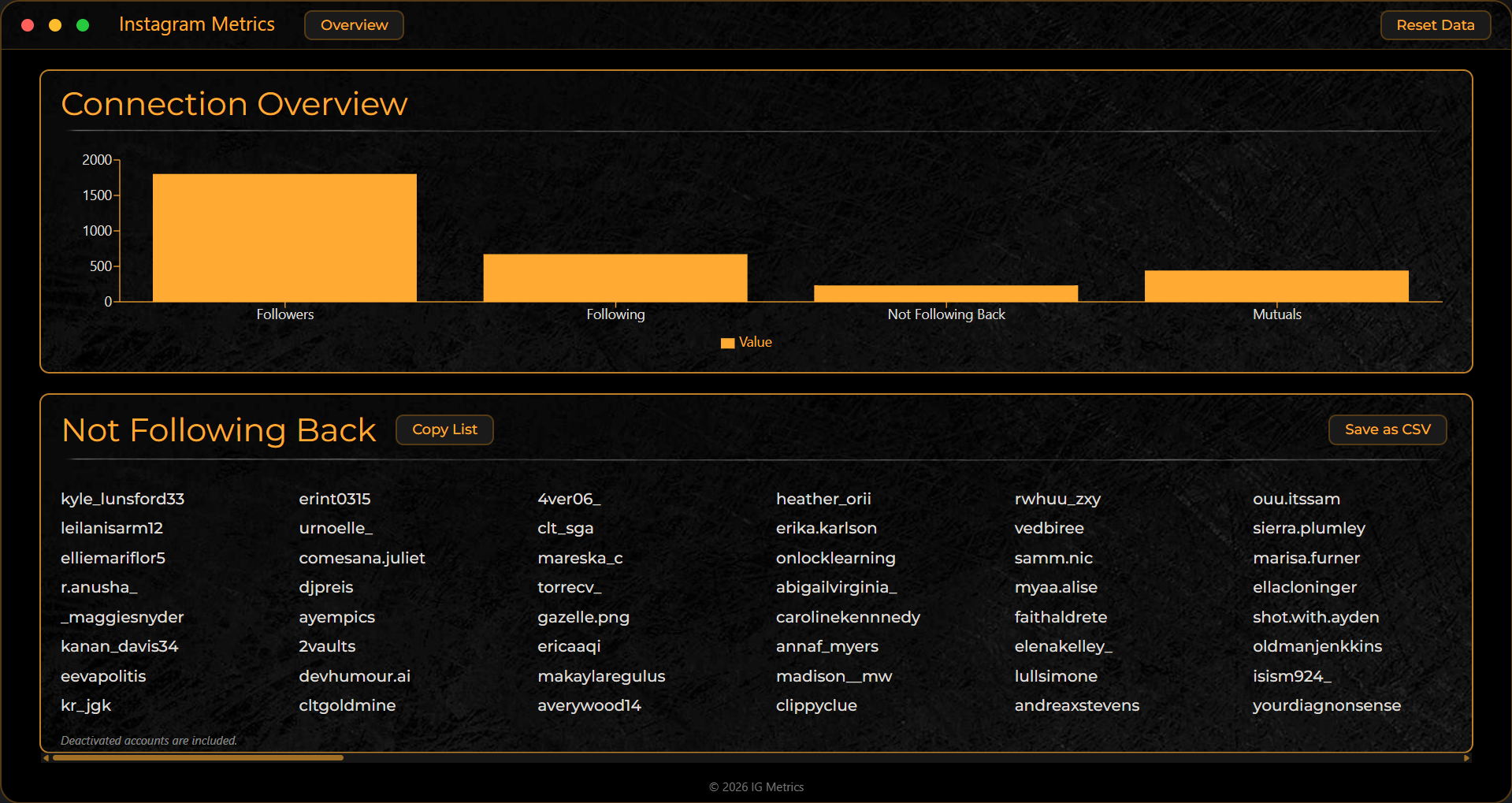

Onboarding, KPI overview, and chart visualization from the production desktop app.

Approach And UX Decisions

Minimal onboarding that asks users to import follower/following JSON files.
Main interface split into Overall Metrics, Connection Metrics, and Not Following Back list.
Top-level toggle switches metrics panels into a chart-driven view for faster scanning.
Orange accenting in the app UI to improve contrast and highlight actionable controls.

Architecture

Electron main process creates a frameless transparent desktop shell and loads Vite dev server or built HTML via FORCE_DEV.
Secure renderer bridge via preload scripts with contextBridge/ipcRenderer for window controls and CSV save.
React + Vite frontend handles import flow, metric computation, and overview/chart view switching.
electron-builder + NSIS packaging with GitHub Releases distribution and electron-updater hooks.

Implementation Highlights

Import Parsing For Multiple JSON Schemas

if (Array.isArray(json)) {
  json.forEach(obj => tempFollowers.push(obj.string_list_data[0].value));
} else if (json.relationships_following) {
  json.relationships_following.forEach(obj => tempFollowing.push(obj.title));
}

Set-Based Diff For Better Performance

const notFollowingBack = following.filter(
  user => !new Set(followers).has(user)
);

const followersNotFollowedBack = followers.filter(
  user => !new Set(following).has(user)
);

Secure CSV Export Through IPC

// renderer
await window.electronAPI.saveCSV(csvContent);

// main
ipcMain.handle("save-csv", async (_, csvContent) => {
  // save dialog + write file
});

Desktop Packaging And Updates

Built with electron-builder and NSIS installer pipeline, then distributed via GitHub Releases with electron-updater lifecycle hooks for update checks.

Challenges And Solutions

Challenge: Different Instagram export schemas

Solution: A single import handler branches by JSON shape and routes data into the correct processing pipeline.

Challenge: Dataset comparisons at scale

Solution: Converted arrays to sets before filtering to keep comparisons near linear time.

Challenge: Desktop-native actions without exposing Node in renderer

Solution: Tight contextBridge API surface for explicit and minimal IPC communication.

Challenge: Packaging metadata bugs

Solution: resolved release pipeline and build permissions by running VS Code with elevated privileges during packaging tasks.

Tech Stack

ElectronReactViteNode.jsRechartsElectron Builderelectron-updaterJavaScript (ES6+)CSS

Outcome

Current reach is early-stage (one active user and no external feedback yet), but the project successfully validated a complete desktop workflow: import to process to visualize to export to distribution.

What I Learned

Electron wraps web technologies into real desktop product experiences.
Secure preload boundaries are essential even in local-first desktop tools.
A practical release pipeline (installer + updater) is part of product development, not an afterthought.
