Case motherboard compatibility: ATX, MATX, and ITX.
Case fan support: 3x 120mm fans or 2x 140mm fans in the front, 2x 120mm or 140mm fans on the top, and 1x 120mm fan in the rear.
Side Panel Type: Plastic
Front IO: 2x USB 3.2 ports, power button, reset button, 1x headphone jack, and 1x audio microphone jack.
Cooler Height Support: Tower coolers up to 165mm or 6.49in.
GPU Length Support: 400mm or 17in.
For more technical info, please visit the manufacturer's website.
The build that is using this part is Cooler Master AMD Ryzen 5 2600x Work Station.

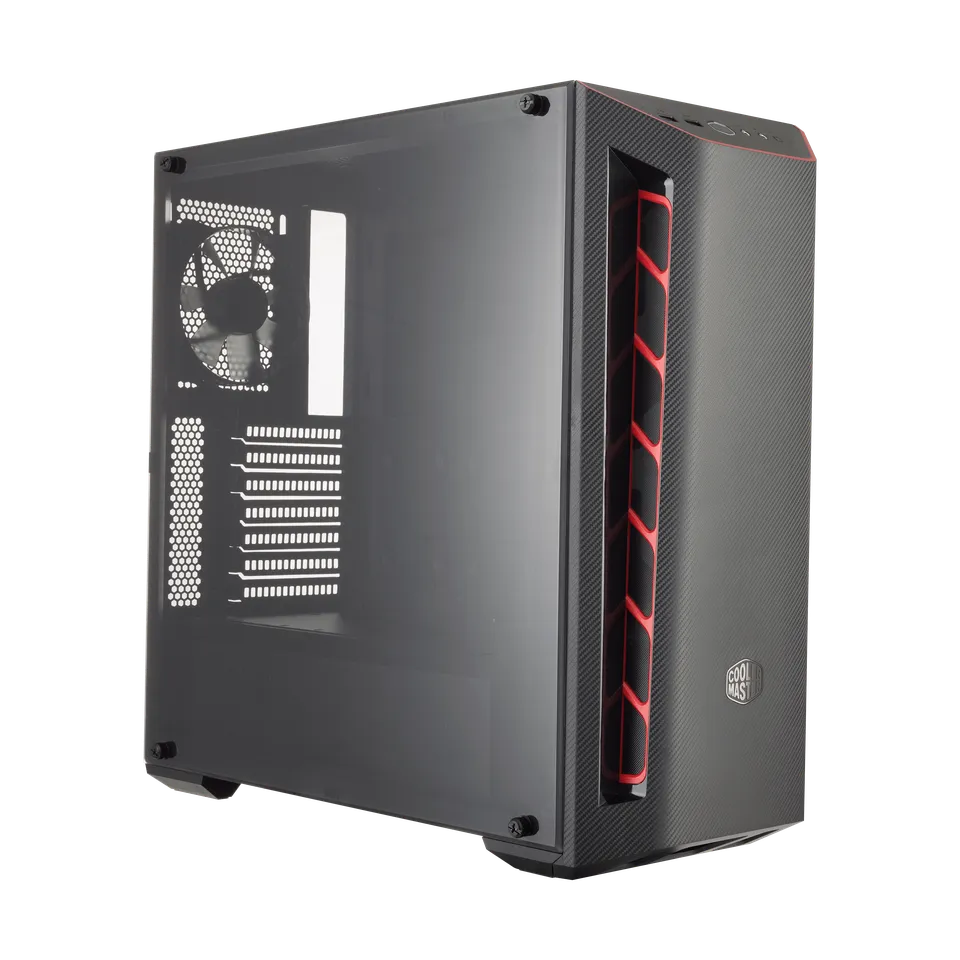

The Masterbox 510L is a great first-time case to build in. Priced at $50, it provides dimensions that can fit most motherboards and coolers. It comes with everything needed to fit a majority of motherboard sizes and cooler heights. However, it only includes one rear fan, so additional case fans will need to be purchased for optimal cooling. The case supports mainly 120mm fans but can accommodate 140mm fans in limited locations, such as the top and front. Cable management is not ideal, as the side panel can warp if cables protrude. Airflow is suboptimal due to limited intake ventilation, so high static pressure fans are recommended. The dust filters should be cleaned at least once a week to prevent noticeable temperature increases and maintain the case's appearance. Despite these issues, the case is lightweight and easy to work with. It does not come with preinstalled motherboard standoffs, but this is manageable with careful reading of the manual. The main downside is the plastic side panel, which is less durable and prone to scratches compared to tempered glass panels.
I give the Cooler Master Masterbox 510L a 2.5/5.
