Assignment 3a: Engineering Disaster

Introduction

In 2014, Takata, one of the largest automotive safety equipment manufacturers, recalled millions of airbags for passenger vehicles. In the 1990's, a new alternative for airbag propellant was necessary when it was decided that Sodium Azide was unsafe to handle in the manufacturing process. Takata, despite warnings, chose to use Ammonium Nitrate in their inflator systems. These inflators had a severe design flaw that allowed moisture inside. Historically, we know Ammonium Nitrate is extrememly unsafe in moist environments.

This moisture degraded the propellant and often rusted the internals of the metal inflator. If the now damaged airbag went off, the inflator would propel dangerous shrapnel into the vehicle's cabin. This design flaw has caused over 290 injuries, about 25 deaths(17 of which in the USA).


Engineering Perspective

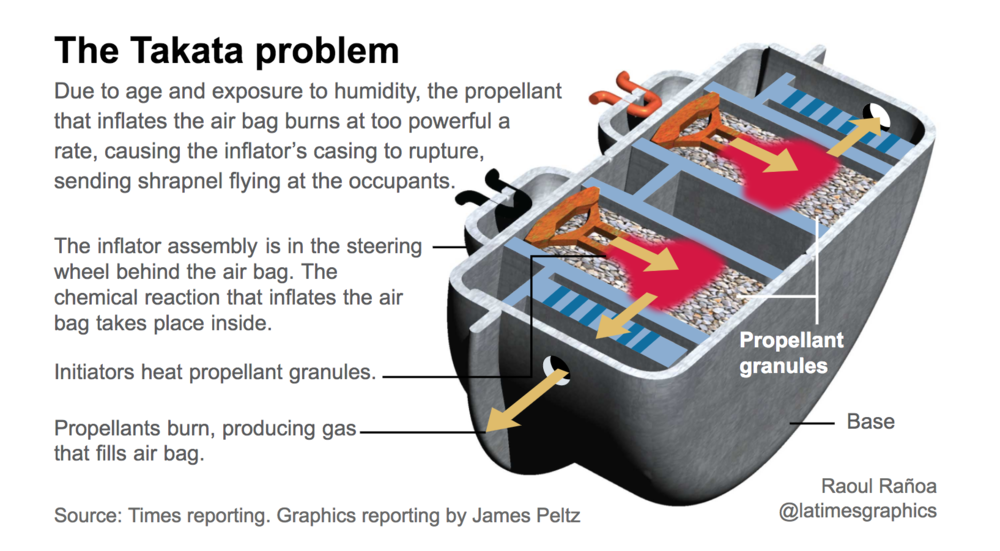

The image below shows the inflator system. The ignitor begins the chemical reaction of the Propellant, which travels through holes in the Inflator, inflating the airbag. The equation describing the inflation velocity of an airbag is: deltaV = deltax/deltat. Airbags deploy at roughly 200mph and are fully inflated in .03 seconds.

Takata Airbag Inflator

We know Pressure = Force/Area. The maximum pressure the Inflator was designed to withstand is far exceeded when the degraded repellant is ignited. This, combined with the likely rusted and weakened Inflator, causes a possibly deadly failure.

Inflator FBD

Lessons Learned

-If a design is supposed to be sealed from hard outside conditions, be sure to assure the design’s capabilities by testing it extensively under those conditions.

-If something is wrong with my design, I need to own up to it and fix it early or it will be much more costly in the long run. Takata has lost billions with this recall.

-This lapse of judgement from Takata changed the engineering design process for the rest of the industry by showing the worst that could happen when a design is faulty and not fixed in a timely manner. Each design should be tested extensively in a variety of conditions before released to the public, especially when people's lives are at stake.
